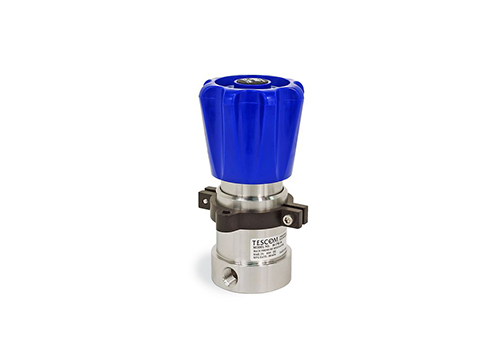

TESCOM™ 26-1700 Series Pressure Control Regulators

TESCOM™ 26 – 1700 Series Pressure – Controlling Regulators
The 26 – 1700 series regulators can control pressures up to 15,000 PSIG / 1034 bar. They are suitable for gas or liquid applications, and for pump discharge pressure control, reactor pressure control, and pressure relief during overpressure.

Specifications
– Maximum inlet pressure: 10,000 psig / 689 bar
– Outlet pressure range: 5 – 500, 5 – 800, 10 – 1500, 15 – 2500, 25 – 4000, 50 – 6000 and 200 – 10,000 psig; 0.35 – 34.5, 0.35 – 55.2, 0.69 – 103, 1.03 – 172, 1.72 – 276, 3.45 – 414 and 13.8 – 689 bar
– Valve body material: 316 stainless steel
– Valve seat material: Chlorotrifluoroethylene (CTFE) (26 – 17X1 to 26 – 17X4), Teflon® (26 – 17X5 to 26 – 17X7)
– O – ring: Nitrile rubber
– Backup ring: Teflon®
– Sealing element: Chlorotrifluoroethylene (CTFE)
– Valve trim: 300 series stainless steel
– Connection sizes and types: 1/8″, 1/4″, 3/8″, 1/2″; SAE, NPTF, MS33649, high – pressure, medium – pressure; 1/2″, 1″; flange
– Operating temperature: – 40°F to 165°F / – 40°C to 74°C
– Flow capacity: Cv = 0.10 (26 – 17X1 to 26 – 17X4)
– Weight: 5 lbs / 2.2 kg
