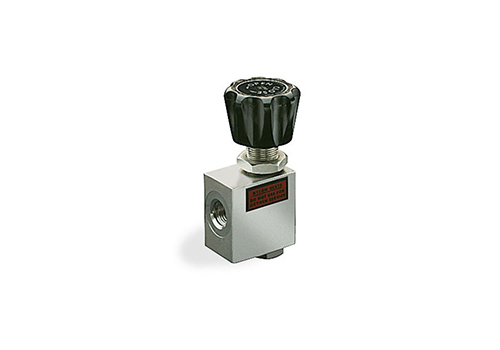

TESCOM™ 30 Series Pressure Shut-Off Valves

TESCOM™ 30 Series Pressure Shut – Off Valves

The 30 – series shut – off valves are suitable for high – pressure high – flow applications up to 10000 psig / 690 bar, providing a flow capacity of Cv = 0.28 – 20.0. The 30 series offers both shut – off and angle valve configurations for bi – directional flow, with soft seats and built – in metal seals. This product is highly suitable for ground support equipment (GSE) support pressure panels, instrument pressure panels and manifolds. It is also an ideal choice for R & D laboratories and gas analysis sampling systems.

Specifications
– Maximum working pressure: 6000, 10000 psig / 414, 690 bar
– Valve body material: 316 stainless steel
– Seat materials: For 30 – 1100 and 30 – 1300: Nylatron; For 30 – 1200 and 30 – 1400: CTFE
– O – ring: Nitrile rubber
– Backup rings: For 30 – 1100: CTFE; For 30 – 1200: 15% graphite – filled Teflon®; For 30 – 1300 and 30 – 1400: Teflon®
– Other components: 316 stainless steel, 17 – 4 stainless steel
– Ambient and fluid temperature: – 40°F to 165°F / – 40°C to 74°C
– Port sizes and types: 1/4″, 3/8″, 1/2″, 3/4″, 1″ and 1 1/2″, BSP, medium pressure (only applicable to 30 – 1100), SAE, NPTF (not applicable to 30 – 1400), MS33649

Flow Capacity
– 30 – 11X1: Cv = 0.28
– 30 – 11X0: Cv = 0.49
– 30 – 1301: Cv = 1.57
– 30 – 1300: Cv = 2.30
– 30 – 1201: Cv = 8.00
– 30 – 1200: Cv = 10.00
– 30 – 1400: Cv = 20.00

Weight
– 30 – 11X1: 1 lb / 0.5 kg
– 30 – 11X0: 3/4 lb / 0.3 kg
– 30 – 1301: 3 – 1/4 lbs / 2 kg
– 30 – 1300: 2 – 1/4 lbs / 1 kg
– 30 – 1201: 8 lbs / 4 kg
– 30 – 1200: 7 – 1/4 lbs / 3 kg
– 30 – 1400: 30 lbs / 14 kg

Other Information
If you need customized models or complete system solutions, please contact our staff.

Features
– Maximum working pressures of 6000 and 10000 psig / 414 and 690 bar
– Cv values from 0.28 to 20.0
– Shut – off or angle valve configurations
– Port sizes from 1/4″ to 1 – 1/2″
– Low operating and breakaway torque at high pressure
– Bi – directional liquid or gas service
– Soft seats ensure bubble – tight shutoff
