TESCOM™ 44-5500 Series Back Pressure Regulators

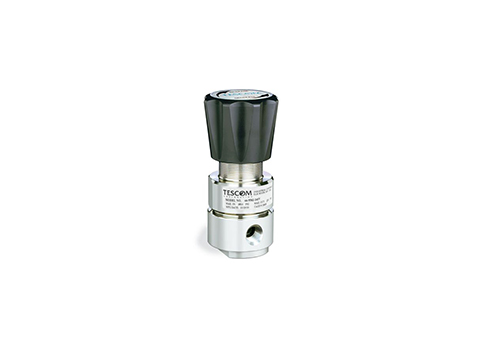

TESCOM™ 44 – 5500 Series Back – Pressure Gas Regulators

The 44 – 4500 series general – purpose compact back – pressure regulators can control pressures up to 300 psig / 20.7 bar, suitable for gas or fluid services. It is applicable to hydraulic or pneumatic applications of general – purpose industrial equipment and back – pressure pump control.

Specifications
– Control Pressure Range: 0 – 50, 0 – 100, 0 – 300 psig / 0 – 3.4, 0 – 6.9, 0 – 20.7 bar
– Materials
– Body: 316 stainless steel or brass
– Valve seat positioner: PEEK
– O – rings: Viton®、Kalrez®
– Other parts:
– Stainless steel type: stainless steel
– Brass type: brass
– Operating Temperature: -15°F to 200°F / -26°C to 93°C
– Port Size and Type: 1/4 NPTF
– Flow Capacity: Cv = 0.30
– Weight: 2 lbs / 0.9 kg

Features
– Economical price and compact design
– Piston – sensing design for safety and reliability
– Options of stainless steel or brass construction
– Cv = 0.3
– Low operating handle torque
– Maintains airtight closure at all reseating pressures
– Panel – mounted as standard
– Optional pressure gauge port
