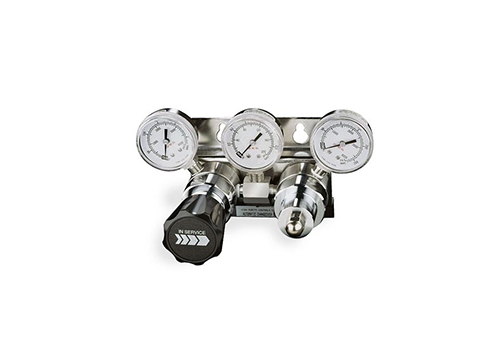

TESCOM™ ACS012 Series Transfer Regulators

TESCOM™ ACS012 Series Conversion Regulators

The ACS012 series is a compact and lightweight high – purity conversion system suitable for special, corrosive, and combustible gases. The leak – proof metal valve seat seal ensures gas purity and integrity. It can supply a continuous low – flow gas stream from two pressure sources. It is especially suitable for supplying gas to analytical instrument carriers, tissue and cell culture incubator CO₂, and laser resonator gases.

Specifications
– Maximum Inlet Pressure: 400 or 3500 psig / 27.6 or 241 bar
– Maximum Delivery Pressure:
– 85 – 115 psig / 5.9 – 7.9 bar
– 135 – 165 psig / 9.3 – 11.4 bar
– 185 – 215 psig / 12.8 – 16.2 bar
– 235 – 265 psig / 16.2 – 18.3 bar
– Valve Body Material: 316 stainless steel, brass, or nickel – plated brass
– Bonnet Material: 300 series stainless steel or brass
– Valve Seat: PTFE
– Diaphragm and Spring: 316 stainless steel
– Friction Sleeve: Inner: PTFE; Outer: 316 stainless steel
– Other Components: 316 stainless steel (and brass valve body)
– Operating Temperature: -40°C to 74°C / -40°F to 165°F
– Port Size and Type: 1/4 NPTF
– Flow Capacity: Cv = 0.06
– Weight: 5 lb / 2.2 kg

Features
– Maximum inlet pressure: 400 or 3500 psig / 27.6 or 241 bar
– Four delivery pressure ranges: 100 to 250 psig / 6.9 to 17.2 bar
– Designed to provide a continuous gas stream for applications requiring stored gas supply
– Made of 316 stainless steel, brass, or nickel – plated brass
– Based on the field – proven TESCOM 44 – 2200 regulator
– Mounting bracket is standard
