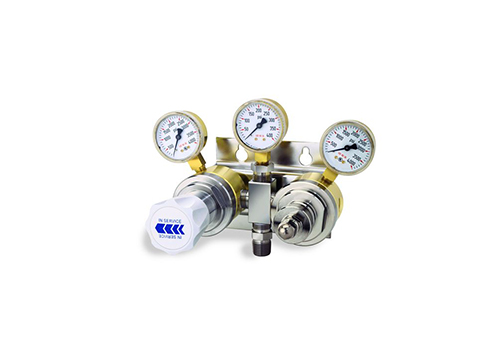

TESCOM™ ACS3200 Series Transfer Regulators

TESCOM™ ACS3200 Series Conversion Regulators
The ACS3200 series is a compact, lightweight high – purity high – flow conversion system suitable for special gases, corrosive gases, and combustible gases. The leak – proof metal diaphragm seal ensures gas purity and integrity. It can supply a continuous gas flow from two pressure sources. It is ideal for CO₂ supply in tissue and cell culture incubators, as well as for shielding gases in metal processing and laser – assisted gas delivery.

Specifications
Pressure Ratings
– Maximum Inlet Pressure: 3000 psig / 207 bar
– Outlet Pressure: 160 – 200 psig / 11.0 – 13.8 bar

Materials
– Valve Body, Diaphragm, and Spring: 316 stainless steel or brass
– Bonnet: Nickel – Plated Brass
– Seat: PCTFE
– Valve O – ring: Viton®
– Other Components: 316 stainless steel

Operating Temperature
-40°C to 60°C / -40°F to 140°F

Port Size and Type
1/4 NPTF

Flow Capacity
Cv = 1.2

Weight
10 lb / 4.5 kg

Features
– Maximum Inlet Pressure: 3000 psig / 207 bar
– Delivery Pressure: 160 – 200 psig / 11.0 – 13.8 bar
– Available in 316 stainless steel or brass versions
– Based on the field – proven TESCOM 44 – 3200 regulator
– Mounting bracket is standard
