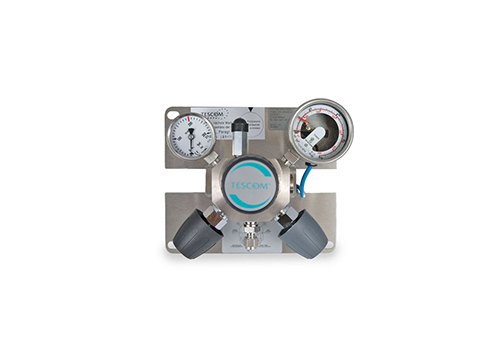

TESCOM™ Compact Panel Pressure Regulator
The compact panel pressure regulator is a central gas supply device used to control the pressure of analytical gases in laboratory facilities. Depending on requirements, it can switch to backup gas cylinders to ensure continuous gas supply. The product is equipped with an in – line pressure gauge to monitor the air supply pressure. It is suitable for implementing central gas supply in laboratory gas distribution systems, laser cutting applications, and other processes that require continuous gas supply.

Specifications
– Fluid Medium: Gas and gas mixtures with a purity of up to 6.0 (99.9999%, volume percentage) and non – corrosive/corrosive properties.
– Pressure Ratings:
– Maximum inlet pressure: 4350 psig / 300 bar
– Outlet pressure range: 0 – 145 psig / 0 – 10 bar; 0 – 290 psig / 0 – 20 bar
– Leak Rate: 10 – 7 mbar / s for helium
– Materials:
– Valve body: 316 stainless steel or nickel – plated brass
– Valve diaphragm: 316L stainless steel
– Operating Temperature: -20°C to 70°C / -4°F to 158°F
– Standard Flow Rate: 10 m3/h (based on nitrogen), Cv = 0.06
– Cleanliness: Clean, suitable for oxygen supply
– Inlet Type and Size: G 3/8 internal thread connection; 6 mm ferrule connection
– Outlet Type and Size:
– Process outlet: G 1/4
– Purge gas outlet: G 1/4
– Relief valve outlet: M 12×1
– Weight: 17.6 lb / 7.9 kg (for 2 cylinders); 8.1 lb / 3.7 kg (for 1 cylinder)

Other Information
For customized models or complete system solutions, please contact our staff.

Features
– The valve and pressure regulator are integrated into one housing, with fewer connectors and a smaller internal volume.
– Suitable for ECD (Electron Capture Detector) applications.
– Short purge time when changing gas cylinders.
– Use of process gas or inert gas purge.
– Maintenance work is simple and fast, with quick – connect fittings in front of the panel providing P & ID.
– Equipped with a stainless – steel mounting plate for non – corrosive environments.
– Adopts an extremely compact design (suitable for installation in most gas cylinder cabinets).
– All versions of the inlet are equipped with filters.
