TESCOM CR441800 Series Transfer Regulators

Pressure Regulator
The CR441800 series is a compact high – pressure conversion system. This system integrates a transfer pressure regulator and a line pressure regulator into a compact wall – mounted system for general – purpose and industrial gas delivery.

Product Details

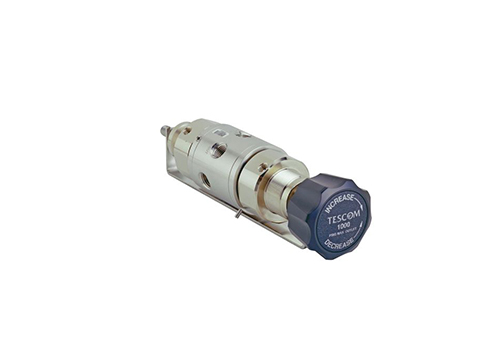

TESCOM™ CR441800 Series Transfer Pressure Regulators
The CR441800 series is a compact high – pressure conversion system. It integrates a transfer pressure regulator and a line pressure regulator into a compact wall – mounted system for general – purpose and industrial gas delivery. The system can supply continuous low – flow gas from two high – pressure sources. It is highly suitable for applications such as analytical instrument oxygen and laser resonator gas.

Specifications
– Maximum Inlet Pressure: 3500 or 6000 psig / 241 or 414 bar
– Maximum Delivery Pressure: Seven maximum delivery pressures ranging from 500 to 2000 psig / 34.5 to 138 bar

Materials
– Valve Body: Brass, 316 stainless steel, or nickel – plated brass
– Bonnet: 300 series stainless steel, brass, or nickel – plated brass
– Valve Seat: Vespel®
– O – ring: FKM

Other Components
Brass and 300 series stainless steel

Operating Temperature
-26°C to 74°C / -15°F to 165°F
