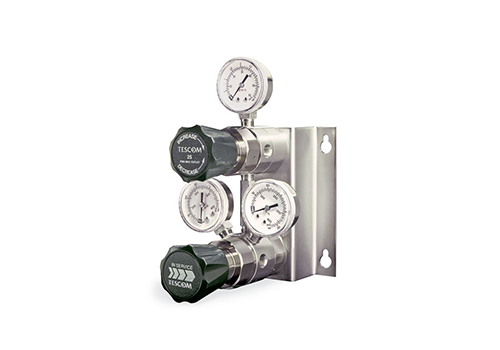

TESCOM™ CS2200 Series Transfer Regulators

TESCOM™ CS2200 Series Conversion Regulators

The CS – 2200 series is a comprehensive high – purity conversion system. This system integrates a conversion regulator and a line regulator into a compact wall – mounted system to supply special, corrosive, and flammable gases. The anti – leakage metal diaphragm seal ensures gas purity and integrity. The system can supply a continuous low – flow gas stream through two pressure sources. It is highly suitable for applications such as analyzer carrier gas, tissue and cell incubator CO2, and laser resonator gas. The CS – 2200 series is a comprehensive high – purity conversion system. This system integrates a conversion regulator and a line regulator into a compact wall – mounted system to supply special, corrosive, and flammable gases. The anti – leakage metal diaphragm seal ensures gas purity and integrity. The system can supply a continuous low – flow gas stream through two pressure sources. It is highly suitable for applications such as analyzer carrier gas, tissue and cell incubator CO2, and laser resonator gas.

Specifications
– Pressure Ratings: Maximum inlet pressure: 3500 psig/241 bar; Outlet pressure range: 0 – 25, 50, 100, 150 psig/1.7, 3.4, 6.9, 10.3 bar
– Valve Body Material: 316 stainless steel or brass
– Valve Plug Material: 300 series stainless steel or brass
– Valve Seal: PTFE
– Diaphragm and Spring: 316 stainless steel
– Friction Sleeve: Internal: PTFE; External: 316 stainless steel
– Other Components: 316 stainless steel (and brass valve body)
– Operating Temperature: -40°C to 74°C / -40°F to 165°F
– Port Size and Type: 1/4 NPTF
– Flow Capacity: Cv = 0.06
– Weight: 5 lb / 2.2 kg

Features
– Maximum inlet pressure: 3500 psig / 241 bar
– Four maximum delivery pressures: 25 – 150 psig/1.7 – 10.3 bar
– Designed to provide a continuous gas stream for applications requiring stored gas supply
– Available in 316 stainless steel or brass versions
– Based on the field – proven TESCOM 44 – 2200 regulator
– Mounting bracket included
