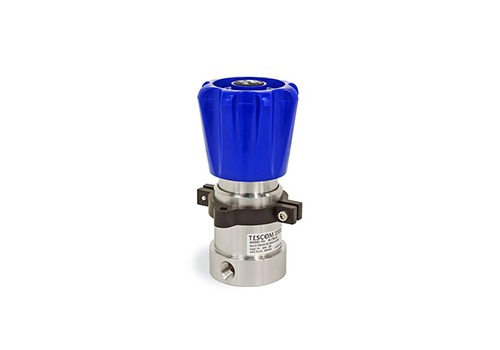

  • TESCOM™ DV Series Regulator Instruments
TESCOM™ DV Series Regulator Instruments

TESCOM™ DV Series Regulator Instruments


  • Delivery Date: 2-4 weeks
  • Descriptions: Valves
  • Brands: TESCOM
  • INQUIRY

TESCOM™ DV Series Voltage Regulator Instrument

The DV series is a compact and lightweight diaphragm voltage regulator that can provide a vacuum pressure control with an accuracy of up to 0.1%. The optional constant bleed function can regulate pressure in both directions. It is very suitable for instrument testing and equipment calibration.

Specifications
– Control Pressure Range: 760 – 50 mm Hg absolute value
– Materials
– Body: Brass or anodized aluminum
– Diaphragm: Buna – N rubber, EPDM, Viton®
– O – ring: Buna – N rubber, EPDM, Viton®
– Other Components: 300 series stainless steel and brass
– Operating Temperature
– Buna – N rubber: -40°C to 74°C / -40°F to 165°F
– EPDM: -40°C to 121°C / -40°F to 250°F
– Viton®: -26°C to 74°C / -15°F to 165°F
– Port Size and Type: 1/4 SAE, NPTF, MS33649; 1/8 NPTF
– Flow Capacity: Cv = 0.25
– Load Types – Standard Vacuum (No Bleed)
– Handwheel adjustment
– Screwdriver adjustment
– Recirculating valve cap handwheel adjustment
– Recirculating valve cap screwdriver adjustment
– Chamber load
– Load Types – Standard Vacuum (Constant Bleed)
– Handwheel adjustment
– Screwdriver adjustment
– Recirculating valve cap handwheel adjustment
– Recirculating valve cap screwdriver adjustment
– Weight
– Brass: 2.4 lb / 1.1 kg
– Aluminum: 1 lb / 0.5 kg

Other Information
– Controls sub – atmospheric pressure
– Excellent repeatability
– Precise diaphragm adjustment with an accuracy of ± 0.1% of full scale
– High sensitivity up to 10 mm Hg absolute value, with a constant bleed option
– Easy to maintain
– Low operating torque
– Provides recirculating valve cover and panel – mount options
