TESCOM™ High-Pressure Panel Regulators

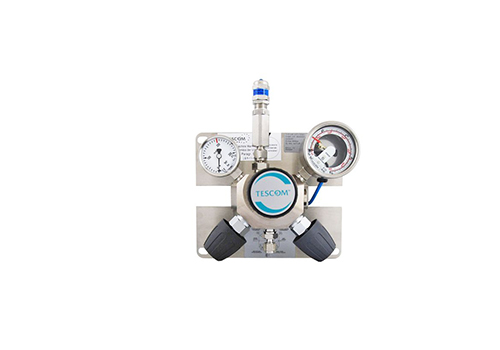

TESCOM™ High – Pressure Panel Regulator
The high – pressure panel regulator is a central gas supply device, which is applicable for controlling the pressure of analytical gases in laboratory facilities. This product is equipped with a contact pressure gauge, enabling the monitoring of cylinder filling pressure. It is highly suitable for high – pressure central gas supply in gas distribution systems in laboratories, and is also an ideal choice for ECD (Electron Capture Detector) applications.

Specifications
– Fluid Medium: Applicable to non – corrosive gases and gas mixtures with a purity of up to 6.0 (99.9999% by volume).
– Pressure Ratings:
– Maximum Inlet Pressure: 2900 psig / 200 bar; 4350 psig / 300 bar
– Outlet Pressure Range: 2175 psig / 150 bar
– Material: Chrome – plated brass or stainless steel
– Operating Temperature: -20°C to 70°C / -4°F to 158°F
– Flow Capacity: Cv = 0.06
– Weight: 9.26 lb / 4.2 kg
– Other Information: For customized models or complete system solutions, please contact our staff.

Features
– Applicable to extremely high operating pressures up to 2175 psig / 150 bar.
– The inlet part is equipped with a purge valve, allowing the use of process gas or inert gas for purging.
– Easy to use and safe to operate (equipped with a relief valve).
– The valve and regulator are integrated in one housing, with fewer connectors and a smaller internal volume.
– Quick and easy to install.
– Small in size.
– A stainless – steel mounting plate can be used in corrosive environments.
– High – pressure and explosion – proof contact pressure gauges are provided.
