TESCOM Labo Doppelregulus Regulators

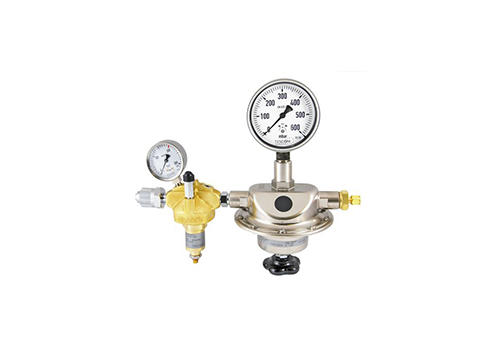

TESCOM™ Labo Doppelregulus Pressure Regulator
Labo – F and Doppelregulus cylinder pressure regulators are suitable for applications with medium – flow requirements (Labo – F) or low – outlet pressure (Doppelregulus). They have a wide range of uses and are suitable for all technical gases (with a purity of up to 5.0). They are ideal choices for precisely controlling low – outlet pressure.

Specifications
– The maximum inlet pressure for Labo – F & Doppelregulus: 2900 psig / 200 bar
– The outlet pressure range of Labo – F: 22, 58, 145, 290 psig / 1.5, 4.0, 10.0, 20.0 bar
– The outlet pressure range of Doppelregulus: 0.73, 1.45, 7.25, 14.5, 22 psig / 50, 100, 500 mbar ; 1.00, 1.5 bar
– Connectors: Inlet: Comply with DIN 477 – 1. Outlet: 6 mm compression – type interface with a 6 mm hose nozzle
– Other information: For customized models or complete system solutions, please contact our staff.

Features
– The single – stage Labo – F is equipped with a high – flow shut – off valve (up to 50 m3/h).
– The double – stage Doppelregulus provides millibar – level pressure control.
– Five outlet pressure setpoints are provided.
