TESCOM™ Ultra-High Purity Regulators

Product Details

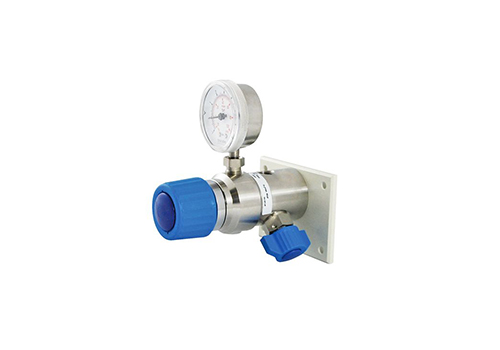

TESCOM™ Ultra – High Purity Pressure Regulator
This ultra – high purity flush – mounted panel pressure regulator is a central gas supply device that combines VCR functionality. It is used for pressure control of high – level analytical gases in laboratory facilities. According to different requirements, these devices can be switched to standby gas cylinders to ensure continuous gas supply. The product is equipped with a dot – type pressure gauge and an alarm, which can monitor empty gas cylinders. It is an ideal solution for implementing a central gas distribution system in laboratories.

Specifications
– Pressure Rating: Maximum inlet pressure: 1000 or 3480 psig / 69.0 or 240 bar; Outlet pressure range: 145, 247 psig / 10.0, 17.0 bar
– Materials: Valve body: Stainless steel 1.4404; Pressure regulator seat: PCTFE; Valve seat: Ceramic plus stainless steel; Other parts: 316 stainless steel
– Operating Temperature: -40°C to 60°C / -40°F to 140°F
– Flow Capacity: < 9 Nm3/h at Cv = 0.06 valve internals - Leakage Rate: 1 x 10 - 8 mbar / s for nitrogen Other Information For customized models or complete system solutions, please contact our staff. Features - Utilizes VCR® technology for high - purity applications - Automatic switching for continuous gas supply - Integrated purge and shut - off valves for rapid purging - Hastelloy® valve internals and high - quality seals for corrosive media - Adopts the field - proven TESCOM 64 - series pressure regulator design
